Ardron Engraving

For engraved labels, nameplates, tags, fobs,
plaques and more

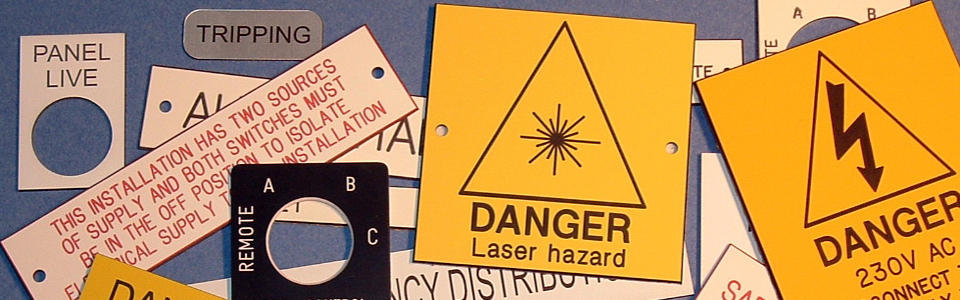

large size picture 3 of panel labels

Materials

Almost any material can be engraved and/or cut, including: rigid or flexible engraving laminate, plastic, cast or extruded acrylic (Perspex), glass, wood, leather, metal, anodised aluminium, foam, fabric and rubber.

Engraving laminate.

Made from acrylic with contrasting coloured layers so that engraving through the cap reveals the core to produce a detailed image.
We stock matt finish 1.5 mm thick material in the following colours : Black/White, White/Black, Red/White, White/Red, Blue/White, White/Blue, Green/White, Yellow/Black, Gold/Black and Silver/Black.

picture of cake topper medium size picture of engraved key fobs medium size picture of panel labels medium size picture of various labels medium size picture of switch labels
Other finishes (Satin, Gloss), colours and thicknesses (0.75 mm and 3.0 mm), together with 3-ply material, are available to order, as are magnetic and photoluminescent products.
medium size picture of warning labels medium size picture of panel labels medium size picture of labels picture of tags

Acrylic.

Cast acrylic reacts when laser engraved to turn a milky colour which produces fine reproduction of photographs whereas extruded acrylic engraves clear making it more appropriate for cutting out (profiling) into shapes.

medium size picture of acrylic good luck charm medium size picture of acrylic image
We stock clear, 3.0 mm thick material in both cast and extruded forms.
Other thicknesses (2.0 mm and 5.0 mm) and colours (including opal, frosted, mirror and flourescent red, yellow, orange, blue, green) are available to order.

Glass.

Glass is laser engraved to produce a fine frosted effect on the surface, however, lead crystal does not engrave well due to the metal in the material, although we have had some excellent successes engraving customers own designs onto this material. Cheaper glass generally produces a better effect.

medium size picture of engraved glasses picture of engraved glass bottles picture of 4 highball glasses picture of 3 mixer glasses
Various sizes of glassware such as mixer glasses, highball glasses, wine or champagne glasses and pint glasses are available to order. Glass bootles and decanters also can be successfully engraved.

Wood.

Lighter coloured wood finishes produce the best contrast for marking by laser. Ordinary soft wood scorches to a dark brown with significant effects from the grain whereas sheets of high density fiberboard core with a wood laminate on each side produce a fine and more even image. Solid hard wood is best for engraving deeply to produce well defined text.

picture of detail of engraved wooden box medium size picture of fretwork wooden bowl picture of engraved wooden memorial plaque picture of detail of engraved wooden bar stool
Wooden objects can be cut out with our laser machines leaving a clean dark edge.
medium size picture of engraved wooden plaque medium size picture of engraved wooden plaque medium size picture of engraved wooden plaque
We stock 3.2 mm thick wood laminate sheets in Alder, Birch, Cedar, Cherry and Maple plus solid Balsa wood.
medium size picture of large wooden candle cube medium size picture of small engraved wooden box medium size picture of small wooden candle cube
Wooden items, such as: boxes, bar stool seats and chopping boards have all been successfully engraved with customers own designs.

Leather.

Black leather generally engraves to reveal a light brown mark which is subtle but light leather usually produces a better contrast. However, due to the different methods used to produce leather the final outcome cannot usually be confidently predicted.

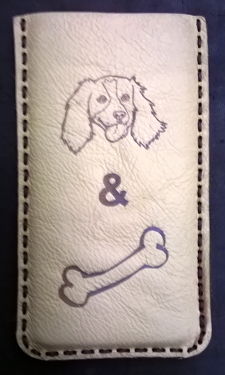

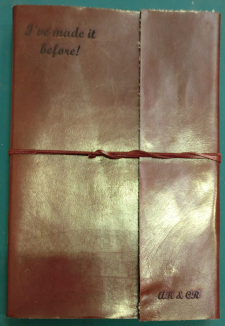

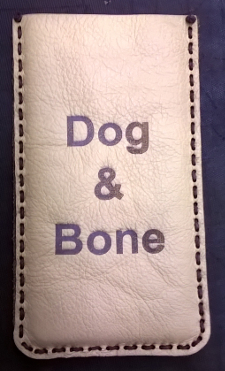

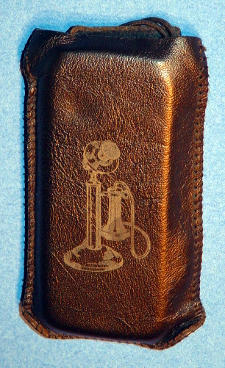

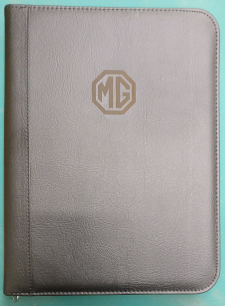

medium size picture of modile phone case medium size picture of modile phone case medium size picture of mobile phone case picture of engraved leather binder picture of engraved leather portfolio
Leather can also be cut or shaped by laser thus enabling stitching/binding holes to be cut and uniformly positioned around the periphery of any object.
Leather wallets, cases and filofax covers have been successfully engraved with customers own designs.

Rubber.

We stock 2.3 mm thick laser rubber for manufacturing rubber stamps which is suitable for water-based, solvent-based and slightly acidic ink.

medium size picture of circular inkstamp bottom medium size picture of circular inkstamp top medium size picture of inkstamp

Metal.

Metal can be marked with a laser using special products such as Cermark or Thermark. These materials produce a durable, high colour density black mark which is bonded to the surface of the metal and can only be removed by grinding.

picture of stainless steel rating plate
Alternatively we can use a diamond drag scriber to mark the surface of metal plates.

Anodised aluminium.

Available in red, blue, silver, bronze and gold finish. Laser engraving reacts with the anodised surface to produce a white image.
Plates and shaped tags are available to order.
